CubeMars Driver Board
Standalone FOC driver board sold by CubeMars for its motor line. Ratings not published on the storefront.

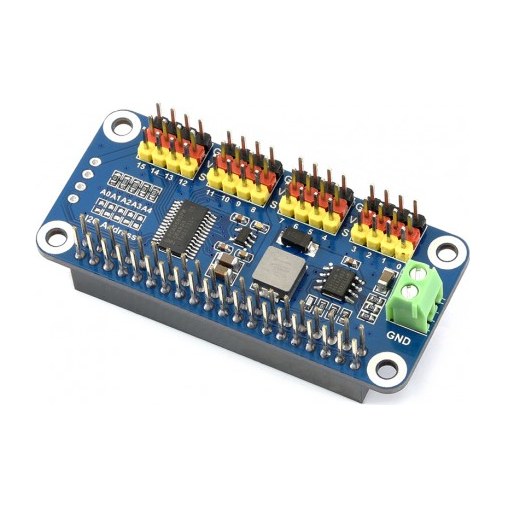

Servo Driver HAT for Raspberry Pi, 16-Channel, 12-bit, I2C
16-ch servo/PWM outputs, 12-bit resolution per channel (4096 scales); I2C control (2 pins); integrated 5V regulator up to 3A output; power 5V (Pi connector) or 6-12V (VIN); servo voltage 5V; logic 3.3V; PCA9685 driver; 65x30mm; mounting holes 3.0mm; weight 0.017kg

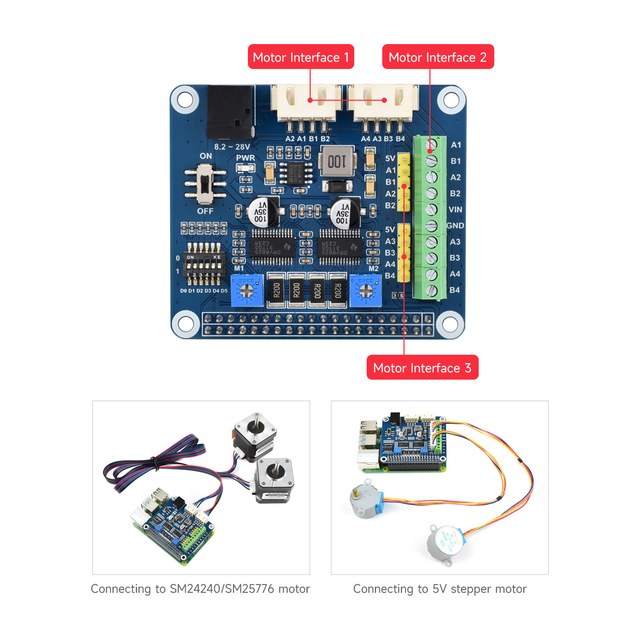

Stepper Motor HAT for Raspberry Pi, Up to 1/32 Microstepping
Onboard dual DRV8825 with built-in microstepping indexer, drives two stepper motors; motor drive voltage 8.2V~28V; motor drive current 2.5A; logic 3.3V; 65x56mm; applicable motors SM24240, 5V step motor

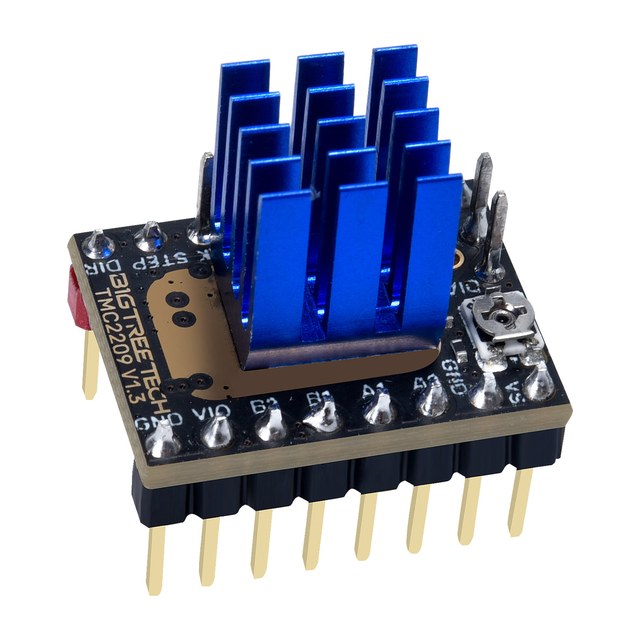

BIGTREETECH TMC2209 Stepper Motor Driver for 3D Printer
Trinamic TMC2209; StealthChop2 silent tech; UART and STEP/DIR modes; up to 256 microstepping interpolation; sensorless homing; up to 2.0A RMS / 2.8A peak; compatible Marlin/Klipper/BTT boards

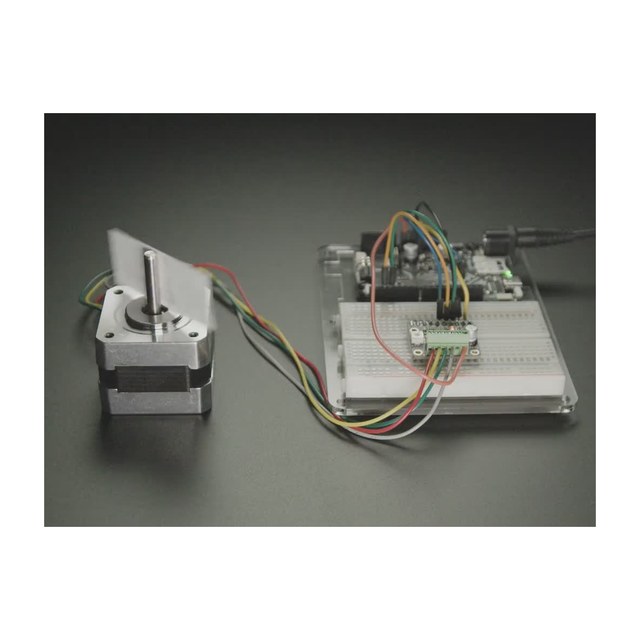

Adafruit A4988 Stepper Motor Driver Breakout Board
Allegro A4988 DMOS microstepping driver; motor voltage 8-35VDC; logic 3-5V; up to 2A with current-limit pot; default 1/16 microstep (MS1/MS2/MS3); terminal screw blocks 2.54mm; DIR/STEP LEDs; sleep/reset/enable lines; 2oz copper; 4 mounting holes

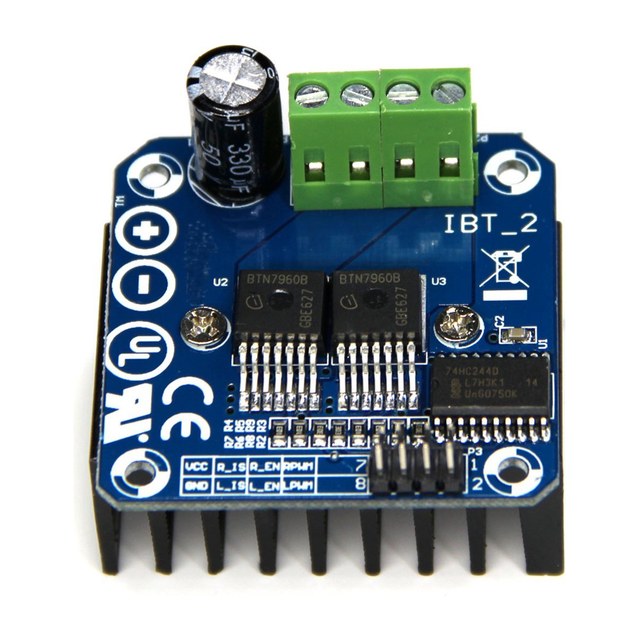

HiLetgo BTS7960 43A High Power Motor Driver Module
Infineon BTS7960 chips, double full H-bridge; model IBT-2; input voltage 6V-27V; max current 43A; input level 3.3-5V; control PWM or level; duty cycle 0-100%; pins RPWM/LPWM/R_EN/L_EN/R_IS/L_IS/VCC(5V out)/GND; thermal & over-current protection; weight 1.76 oz (listing)
