4 partsin 3 familiesView: Families · All parts

  • MG90S digital servo

    Weight 13.4g; Dimension 22.8x12.2x28.5mm; Stall torque 1.8kg/cm (4.8V), 2.2kg/cm (6.6V); Operating speed 0.10s/60deg (4.8V), 0.08s/60deg (6.0V); Operating voltage 4.8V (spec table 4.8-6.0V); Temp range 0-55C; Dead band width 1us; Servo wire 25cm; JR plug (fits JR/Futaba); ~180deg rotation; CE & RoHS

    Quote1 part · 1 by quote
    Compare variants

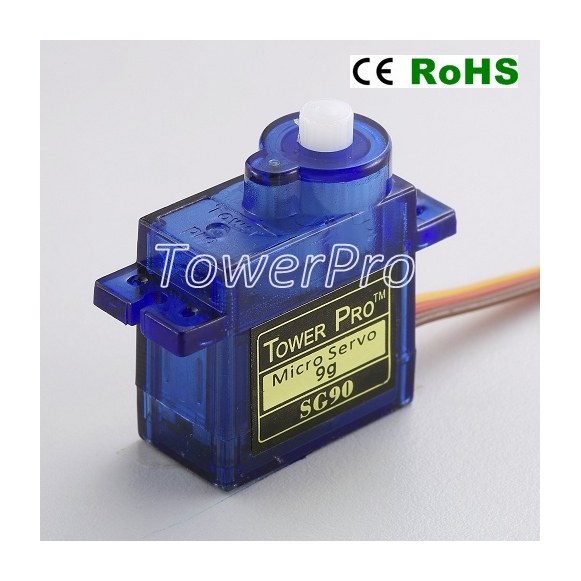

  • SG90 servo

    Weight 9g; Dimension 23x12.2x29mm; Stall torque 1.8kg/cm (4.8V); Operating speed 0.12s/60deg (4.8V); Operating voltage 4.8V; POM gear set; Temp 0-55C; Dead band 1us; Wire 25cm; JR plug

    Quote2 parts · 2 by quote
    Compare variants

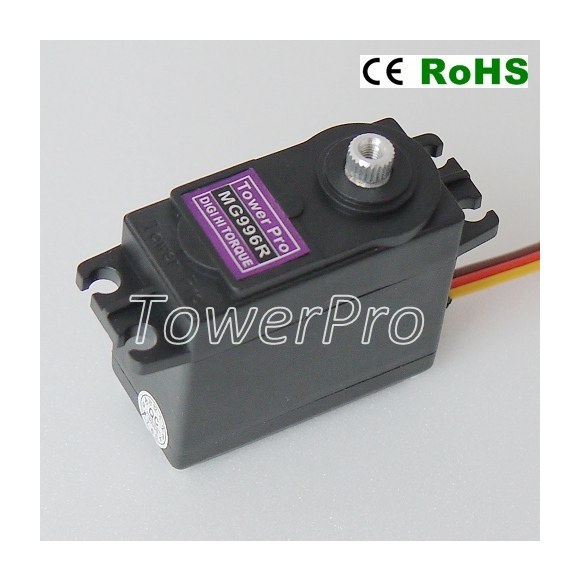

  • MG996R Robot servo 180deg Rotation

    Weight 55g; Dimension 40.7x19.7x42.9mm; Stall torque 9.4kg/cm (4.8V), 11kg/cm (6.0V); Operating speed 0.19s/60deg (4.8V), 0.15s/60deg (6.0V); Operating voltage 4.8~6.6V; Metal gears; Temp 0-55C; Dead band 1us; Wire 32cm; JR plug; idle current 10mA, no-load 170mA, stall 1400mA; CE & RoHS

    Quote1 part · 1 by quote
    Compare variants
